Secure Digital Recorder
Portable
Briefcase Style
Lightweight
Available with Sunlight Viewable Monitor
Digital Video and Photo Image Capture

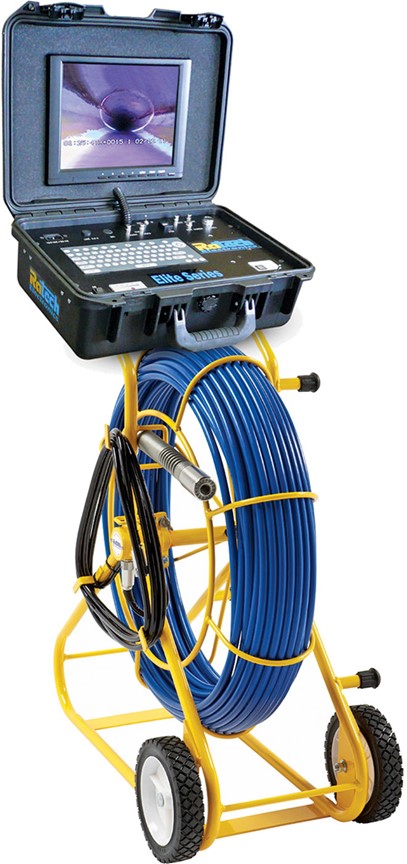

The Elite-SD© is the newest innovation in closed circuit pipeline inspection technology. The SD is constructed around a fully digital SD card recorder and optional built-in hardware. The CCU folds up into a compact, slim, and lightweight
briefcase style unit, weighing a mere 10 lbs., making it easy to carry with you. A 10.4″ Hi-Resolution LCD screen and keyboard make up the remainder of the Elite-SD system.
The SD Card recorder is accessible from the front of the unit making it convenient to record your inspections directly into an SD Card. The video inspection is recorded quickly and easily using one-touch recording. The video is recorded in AVI format allowing up to 240 minutes that can be recorded onto a 1GB SD card.
The control unit is designed with all operating functions top mounted for ease of use and monitoring. Included on the panel is a camera test terminal for easy analysis of problems that may occur. It allows the camera to be tested without the cable reel.
An on-screen display overlay system is included providing on-screen count, time, date and eight (8) pages of memory for listing problems and displaying of company information.
Specifications:
Inspection Cameras
• Compact camera design – (1.375”D x 1.85”L)
• Inspects from 2-10” pipes
• 512Hz In-line transmitter
• Shock and water resistant encapsulated high resolution low lux camera module
• High intensity LED lighting with polycarbonate cover
• Anti-scratch, high impact sapphire lens viewing window
• Durable stainless steel housing
• Includes 2” sleeve and 3” finned skid
• Heavy duty flexible spring assembly
Monitor/Camera Control Unit
• 10.4″ Flat LCD Hi-Res monitor
• SD Card Recorder
• On-screen counter with time, date and keyboard/screenwriter
• Condenser microphone
• Lights: variable intensity
• Camera test socket
• Camera input terminal
• Video I/O terminals
• Hard-cover carrying case folds to briefcase style
• Power: 110-130 VAC, 60 Hz
• Weight: 10 lbs
Push Cable
• Combination push rod video cable, 0.475”D with low friction polypropylene jacket
• Water-proof, dual jacket Gel RodTM cable
• 200’ (60 meters) included standard length (lengths up to 400’ available) Coiler
• Overall size: 32”H x 14”W x 27”D
• Slip-ring: sealed, continuous contact, maintenance free
• Weight: 45 lbs (w/200’ of cable) – Balanced optimized
• Tough, durable powder coat paint finish
• Protective cable reel cover included
