Features
• Small and Compact
• 7.1” TFT LCD
• 100’ Mini Gel Rod™ Cable
• Includes Lithium-Ion battery
• Digital Video and Photo Image Capture
• On-screen distance counter
• Compatible with any Ratech Camera

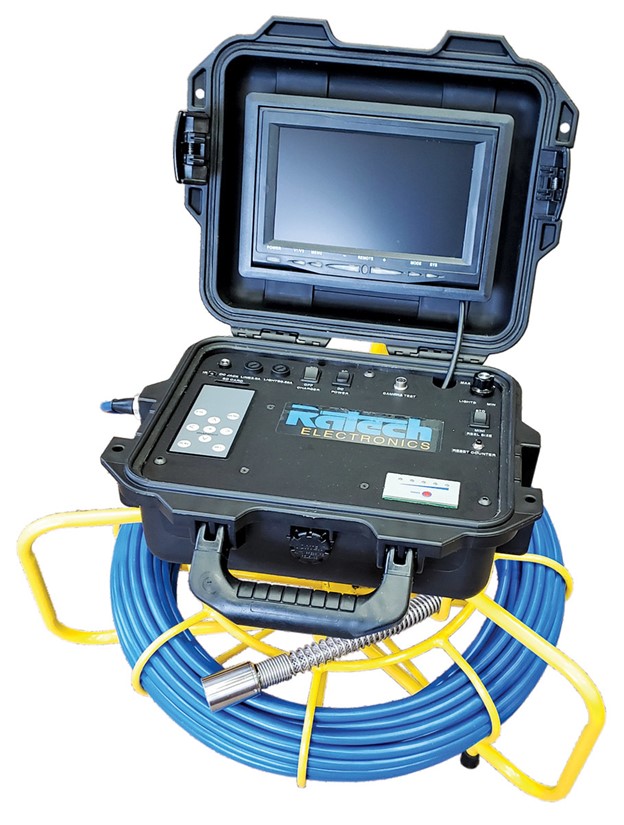

Ratech is proud to introduce the newest innovation in our pipe inspection camera systems: the Plumber’s Helper Jr (PH-Jr). Based on a small-scale reel, the system comes with 100’ mini Gel RodTM cable, a removable compact command module with 7.1” LCD, built-in battery, and SD recorder for recording digital images and video. This mini pipe inspection system is available with a full spectrum 1.375” self-leveling color camera, or a standard color camera, or any one of our 3 micro camera head (5/8”, ¾” or 1” diameter). All at an affordable price while still maintaining all the quality of our high end systems.
Specifications:
Inspection Cameras
• Compact camera design – Color (1.375″D x 1.85″L)
• Cameras inspect from 2-10″ pipes
• 512Hz In-Line transmitter
• Shock and water resistant optimized rugged camera module
• High sensitive CCD technology
• High intensity LED lighting with polycarbonate cover
• Scratch resistant sapphire lens viewing window
• Durable stainless steel housing
• Includes 2″ sleeve and 3″ finned skid
• Camera removal tool
Monitor / Camera Control Unit
• 9″ Hi-Res industrial COLOR monitor with tilt stand
• Lights: variable intensity
• Camera test socket
• Camera input terminal
• Video I/O terminals
• Power: 110-130 VAC, 60 Hz
• Size: 11.0″W x 10.0″H x 14.0″D
• Weight: 18 lbs
Push Cable
•Combination push rod-video cable, 0.475″D with low friction polypropylene jacket
• Water-proof, dual jacket Gel RodTM cable
• 200′ (60 meters) standard length included (lengths up to 400′ available)
Coiler
• Overall size: 32″H x 14″W x 27″D
• Slip-ring: sealed, continuous contact, maintenance free
• Weight: 45 lbs (w/ 200′ of cable) – Balance optimized
• Tough, durable powder coat paint finish
• Protective cable reel cover included
Optional Equipment
• Self-Leveling Color Camera
• 512Hz Receiver with Depth Readout (also available in Deluxe Version)
• Monitor Carrying Case
• Roller Skid for 6″, 8″ and 10″ straight runs
